Air/Oxygen Blenders

Air-Oxygen-Blender (O2-Blender) are used to administer a continuous, precise mix of medical air and medical oxygen through its outlet ports to infants, children and adults. The exact fractional inspired oxygen concentration (FIO2) corresponds to the selected FIO2 setting on the control knob, which can be adjusted from 21% to 100%

Quality Mix Low Flow Air-Oxygen-Blender



• Total flow maximum: 45 LPM
• With switchable bleed-function (on/off)
• Configurable with up to 3 flowmeters
• An oxygen monitor can be added to the Blender to

  check the precise FiO2 concentration
• With an extra pressure module, different input

  pressures of AIR and O2 can be compensated
• Audible warning in case of gas failure
• Robust and intelligent design due to recessed

  adjusting knob
• The O2 mixer is MRI compatible


Order Number: QM-LF

Quality Mix High Flow Air-Oxygen-Blender



• Total flow maximum: 110 LPM
• Configurable with up to 3 flowmeters
• An oxygen monitor can be added to the Blender to

  check the precise FiO2 concentration
• With an extra pressure module, different input

  pressures of AIR and O2 can be compensated
• Audible warning in case of gas failure
• Robust and intelligent design due to recessed

  adjusting knob
• The O2 mixer is MRI compatible


Order Number: QM-HF

          Quality Mix Air-Oxygen blender with Quality MonO2 Oxygen-Monitor  (Example of use)

User Manual Quality Mix Air-Oxygen Blender LF/HF
Bedienungsanleitung Quality Mix LF u. HF[...]
PDF-Dokument [6.3 MB]
Flyer Quality Mix Air-Oxygen Blender LF/HF
Prospektblatt Quality Mix GBR - HVS.pdf
PDF-Dokument [463.3 KB]



Precision Medical Low Flow Air-Oxygen-Blender
Modell: PM 5300



• Total flow maximum: 30 LPM
• With switchable bleed-function
• Configurable with up to 2 flowmeters
• Audible warning in case of gas failure
• Lightweight and intelligent design due to recessed

  adjusting knob


Order Number: PM5300



Precision Medical High Flow Air-Oxygen-Blender
Modell: PM 5200



• Total flow maximum: 120 LPM
• Configurable with up to 2 flowmeters
• Audible warning in case of gas failure
• Lightweight and intelligent design due to recessed

  adjusting knob


Order Number: PM5200HF

User Manual Precision Medical Blender 5200 (HF) and 5300 (LF)
Bedienungsanleitung PM5300, PM5200 HVS -[...]
PDF-Dokument [9.5 MB]
Flyer Precision Medical Blender 5200 (HF) and 5300 (LF)
Prospekt PM 5300-PM 5200 GBR - HVS.pdf
PDF-Dokument [2.4 MB]





Bio-Med Low Flow Air-Oxygen-Blender



• Total flow maximum: 30 LPM
• With permanent bleed-function
• Configurable with up to 2 flowmeters
• Audible warning in case of gas failure
• Robust design



Bestellnummer / Order Number: BM-LF





Bio-Med High Flow Air-Oxygen-Blender



• Total flow maximum: 108 LPM
• With permanent bleed-function
• Configurable with up to 2 flowmeters
• Audible warning in case of gas failure
• Robust design


Order Number: BM-HF

Bio-Med „NEO2 BLEND“ Air-Oxygen-Blender


• Total flow maximum: 30 LPM
• With switchable bleed-function (on/off)
• Pre-configured with 2 flowmeters

  (0-15 LPM and 0-1 LPM or 0-3,5 LPM)
• Audible warning in case of gas failure
• Robust design
• Has a pivoting system - quick activation and

  deactivation of the flow by simply tilting the

  flowmeter



Bestellnummer / Order Number: BM-N2

User Manual Bio-Med Air-Oxygen-Blenders
Bedienungsanleitung Bio-Med Blender HVS [...]
PDF-Dokument [3.4 MB]
Flyer Bio-Med Air-Oxygen-Blenders
Prospekt Bio-Med Neo2 Blend GBR - HVS.pd[...]
PDF-Dokument [809.4 KB]

Maxtec MaxBlend2 Low Flow

Air-Oxygen-Blender


• Total flow maximum: 30 LPM
• Available with 3 LPM, 15 LPM or 30 LPM

  dual-scale flowmeter with backlight
• Optional upgrade with a second flowmeter

  possible
• Audible warning in case of gas failure
• With switchable bleed-function (on/off )
• Integrated O2 monitoring with adjustable alarm

  limits
• Large, backlit LCD with low-light sensor
• DC power port


Order Number: MB2-LF

Maxtec MaxBlend2 High Flow

Aix-Oxygen-Blender


• Total flow maximum: 100 LPM
• Available with 70 LPM dual-scale flowmeter

  with backlight
• Optional upgrade with a second flowmeter

  possible
• Audible warning in case of gas failure
• Integrated O2 monitoring with adjustable

  alarm limits
• Large, backlit LCD with low-light sensor
• DC power port


Order Number: MB2-HF

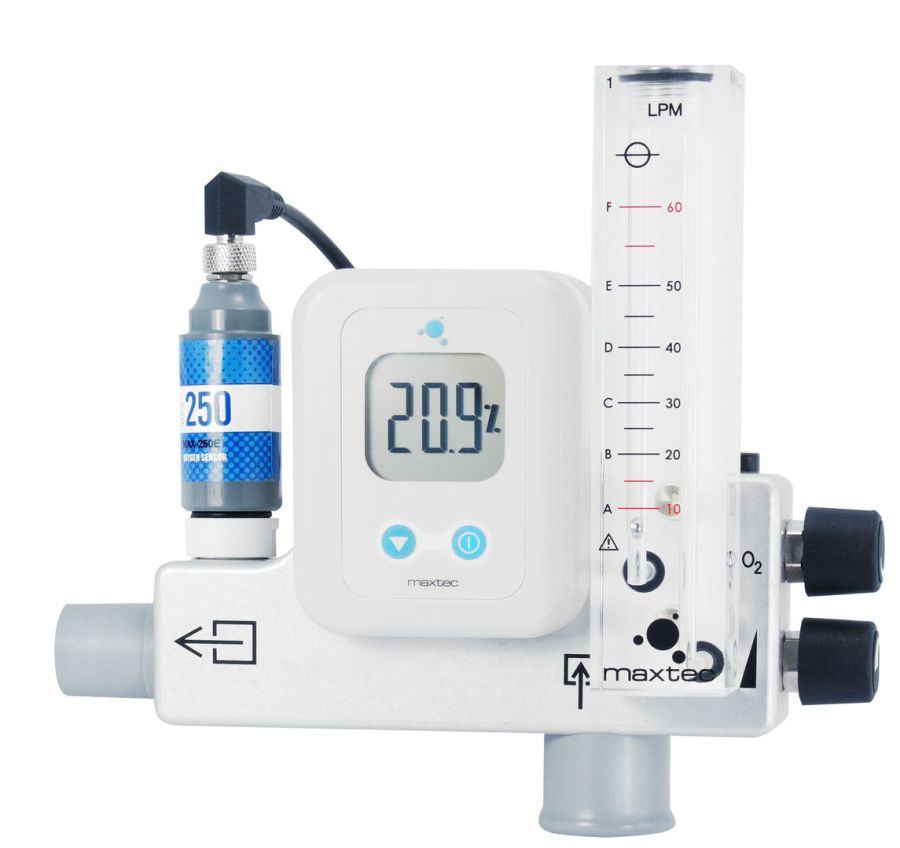

Maxtec MaxVenturi High Flow

Air-Oxygen-Blender



• Total flow maximum: 60 LPM
• Available with 60 LPM flowmeter
• With integrated O2 monitoring
• Through the Venturi Principle, the supplied

  oxygen mixes with ambient air



Order Number: MV-HF



Bird Ultra Low Flow Air-Oxygen-Blender



• Total flow maximum: 30 LPM
• With permanent bleed function
• Pre-configured with 2 block flowmeters

  (0-16 LPM and 0-5, 0-10 or 0-16 LPM /

   0-10 LPM and 0-1 or 0-10 LPM)
• Audible warning in case of gas failure
• Robust design



Order Number: B-U-LF



Bird Low Flow Air-Oxygen-Blender


• Total flow maximum: 30 LPM
• With permanent bleed function
• Configurable with up to 2 flowmeters
• Audible warning in case of gas failure
• Robust design


Order Number: B-LF



Bird High Flow Air-Oxygen-Blender



• Total flow maximum: 120 LPM
• With permanent bleed function
• Configurable with up to 2 flowmeters
• Audible warning in case of gas failure
• Robust design


Order Number: B-HF
